This page lists pictures of the various Mazda race cars and of engines and engine bays.
Click on a picture to view a larger version in a separate window.
| Mazda Rx-7 SA racers | |
|---|---|
separate page | Rx-7 factory race cars at the 1979 Daytona 24Hrs race, info and pictures. |
| Picture grabbed from video. | |
800x528, 100kB | 1982 Euro specs FB Rx-7 SDX with 252i race car in the background. |
| Mazda publicity picture found on jalopnik.com website. The same picture can also be found in the Dutch 1982 Rx-7 sales brochure. | |
| Mazda 767B | |
|---|---|

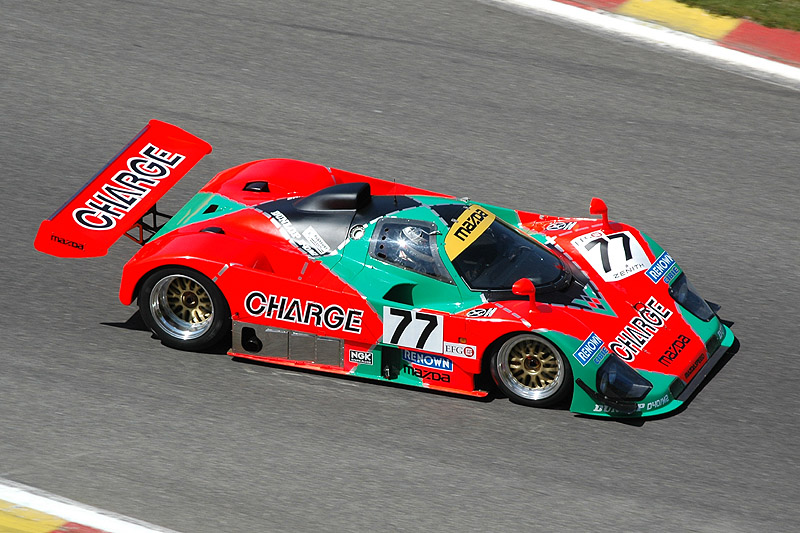

 800x533, 180.3kB | Mazda 767B Nr.001, now privately owned, at the 2014 Spa Classic Endurance Race. |
| Picture taken at the 2014 edition of Spa Classic by Rob de Bie ( http://robdebie.home.xs4all.nl/various/spa2014-05-17.htm ). | |
 511x299, 35kB | Detail of vent on 767B door window. |
| Picture taken at the 2014 edition of Spa Classic by Rob de Bie ( http://robdebie.home.xs4all.nl/various/spa2014-05-17.htm ). | |
| Mazda 787B | |
|---|---|
| Two scans of a picture taken from a Dutch 1992 Mazda RX-7 sales brochure.
My scanner software tried its best to remove both the printed moire effects and any composite weave patterns,
trust me: the entire body and wing show these composite patterns. | |

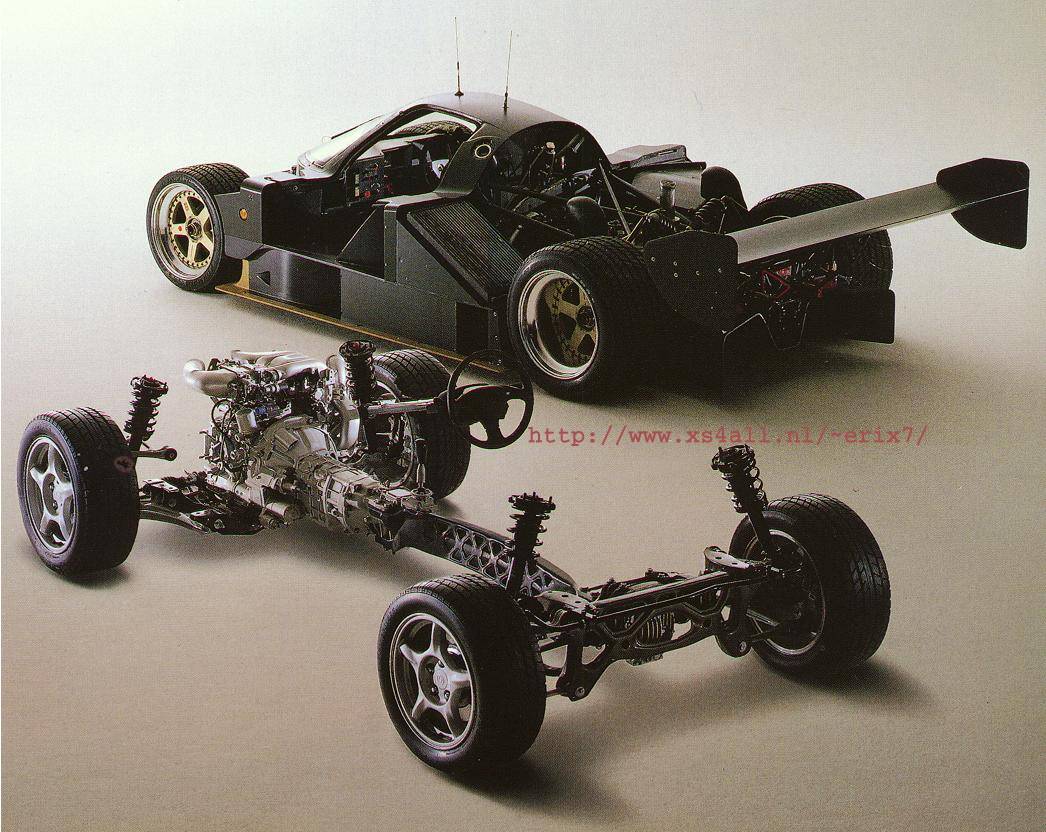

 1046x832, 142kB | 3rd gen RX-7 running gear in front of a unpainted 787B with its covers and doors removed. |

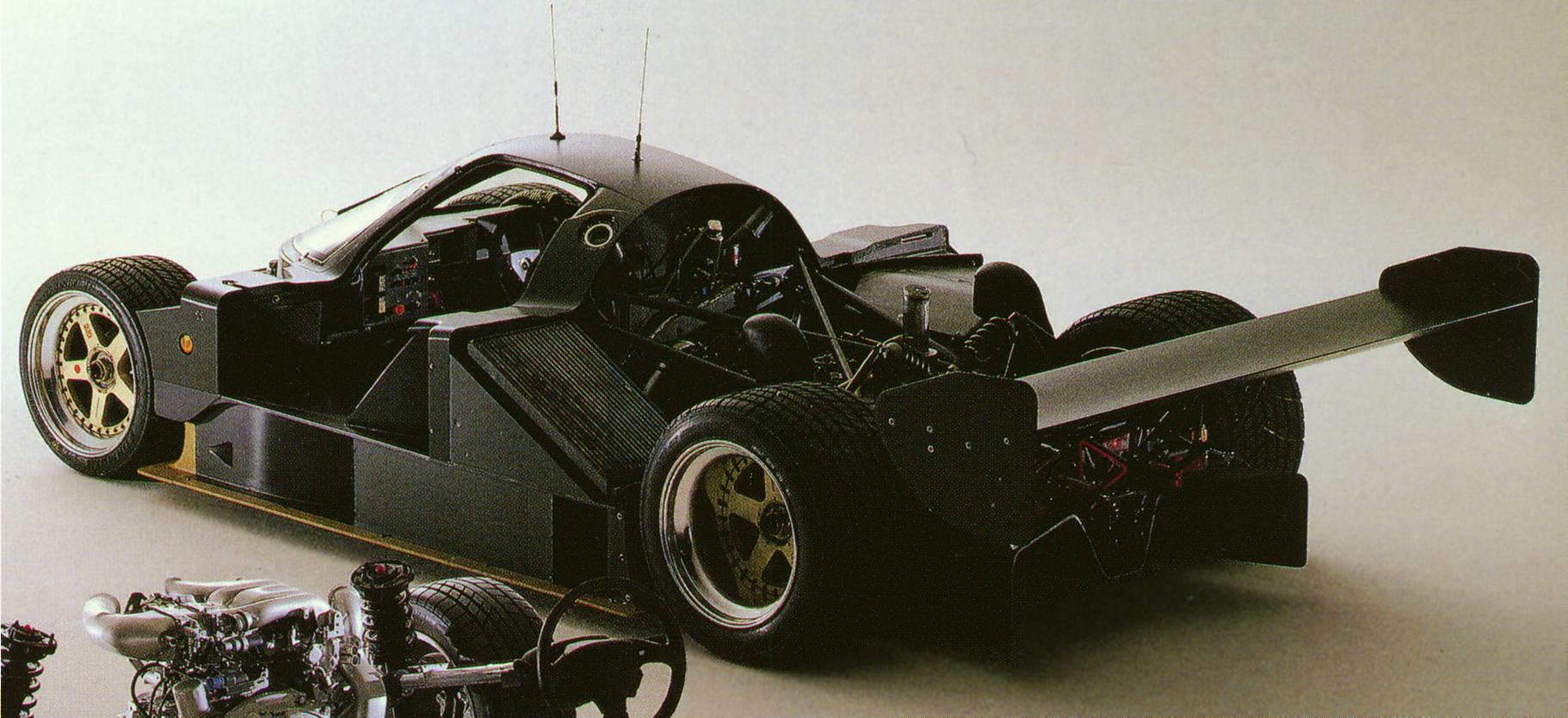

 1822x834, 182kB | Enlarged view of the 787B, note the sprint-race wing end plates. |

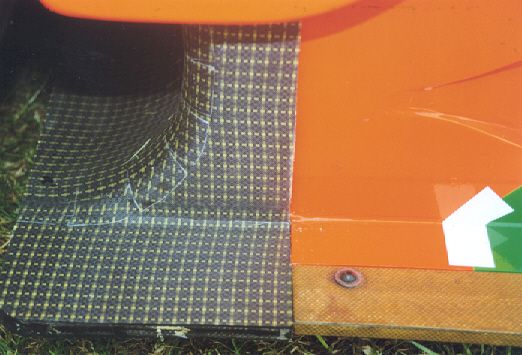

 522x355, 38.2kB | Detail of carbon/kevlar weave on body behind left front wheel of 787B-002. |
| Picture taken at 1999 Goodwood Festival of Speed, by ??? | |
| 26B engine of Mazda 787B | |
|---|---|

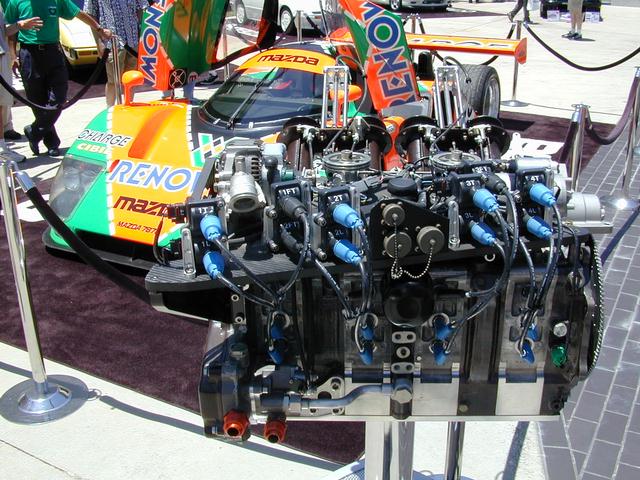

 640x480, 80kB | Lefthand side of 26B engine on pedestal in front of newly restored 787B chassis nr.002. |
| Picture taken at the 4th edition of the Sevenstock rotary event (June 16, 2001) by Jaime V. ( www.panix.com/~jaimev , site is no longer online). | |

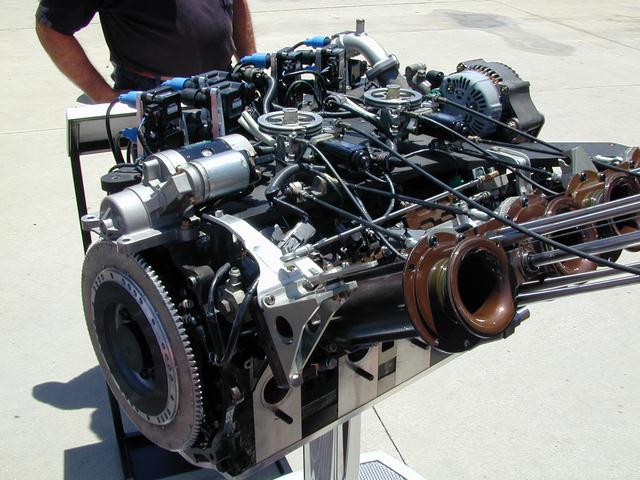

 640x480, 62kB | Rear and righthand side of 26B engine on pedestal. The brown adjustable intake trumpets are hidden inside the air box when the engine is fitted to the car. The adjustable intake trumpets are fully retracted. |
| Picture taken at the 4th edition of the Sevenstock rotary event (June 16, 2001) by Jaime V. ( www.panix.com/~jaimev , site is no longer online). | |

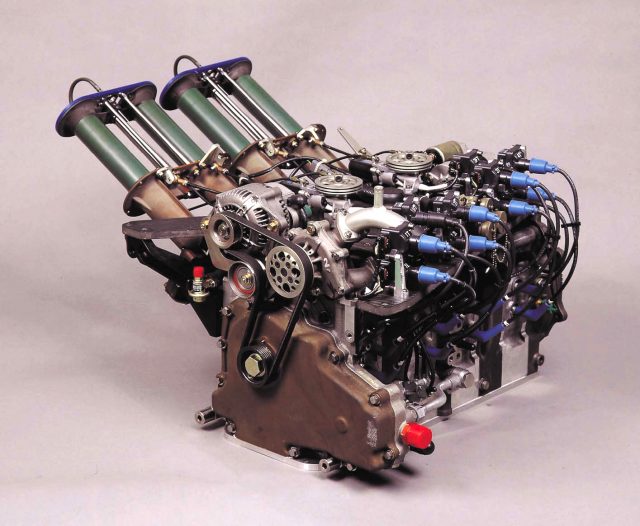

 640x526, 59.7kB | Front and lefthand side of 26B engine. Note that the adjustable intake trumpets are fully extended. |
| Mazda publicity picture, found on the Japanese Nostalgic Car blog. | |
